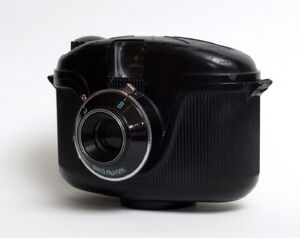

Shkolnik 02

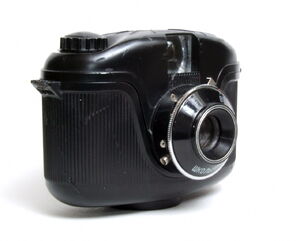

Shkolnik 07

type 2b

The Shkolnik (=Школник means Student) is a medium format film viewfinder like box camera made by MMZ (Minsk Mechanical Factory), Minsk, former USSR, and produced betweeen 1962-69 with quantity about 500.000 units.

Shkolnik was not made by BeLomo because its end of producing was 1969, before the MMZ's name changed as BeLOMO. It is rare in the flea market.

There are 3 types and 2 sub-types of the camera [1]

3

type 2a image by Alexander Komarov

SpecificationsEdit

Data belongs to the Shkolnik type 2b

  • Film 120 roll, picture size 6x6cm
  • Engraving on the top plate: MMZ logo
  • Lens: two elements, 75mm f/8, glass, filter slip-on
  • Aperture: a rotary round holes system, f/8, f/11, f/16; setting: lever and scale on the lens-shutter barrel,
  • Focusing: fixed focus, 3.5m to inf
  • Shutter: one speed leaf shutter 1/30, M (instant) and B; setting ring on the lens-shutter barrel
  • Shutter release: on the lens-shutter barrel
  • Cable release socket: on the lens-shutter barrel
  • Cocking lever: on the lens-shutter barrel
  • Viewfinder: reverse telescopic finder, plastic
  • Winding knob: on top of the camera:
  • Flash PC socket: none
  • Back cover: removable with both sides and bottom plate, opens by a lever on the bottom plate, w/red window
  • Engraving in the camera: СДЕЛАНО В СССР ( SDELANO V SSSR = Made in USSR)
  • Tripod socket: 3/8"
  • Strap lugs
  • Body: plastic; Weight: 240g
  • Serial no. none

Notes and referencesEdit

  1. Typing and info are as to Alexander Komarov in Fotoua
