|357369255_729cb56c13_m.jpg |357369421_694472ef0a_m.jpg |357369634_20c8c45f30_m.jpg |- |model B2, 1903, B&L Rapid Rectilinear lens in a B&L Automat shutter |model B4, 1909, B&L Rapid Rectilinear lens in a Kodak Ball Bearing shutter |model C, 1909, B&L Rapid Rectilinear f4 lens in a Kodak Ball Bearing Shutter on moveable lens board, images by Bill Strong

|}
Cameras 020

No. 3-A Folding Pocket Kodak Model B-3

{|class=plainlinks

The No. 3A Folding Pocket Kodak was a folding bed camera for making exposures in 3¼×5½ inch postcard format on type No. 122 rollfilm. It was introduced by Kodak in 1903 and made until 1915. Variants were B, B2, B3, B4, B5, C and G. Early variants were expensive and had for example a combination of Kodak Automatic shutter and Rapid Rectilinear lens of Bausch & Lomb. Later moderately priced variants got the Ball Bearing Shutter. Both shutters were still for pneumatic remote operation or release by lever. A glass plate adapter was available for the camera. A later expensive variant had a Compound shutter with Zeiss Kodak Anastigmat.

The production of cameras for that format was continued until 1943 (No. 3A Kodak Series III).

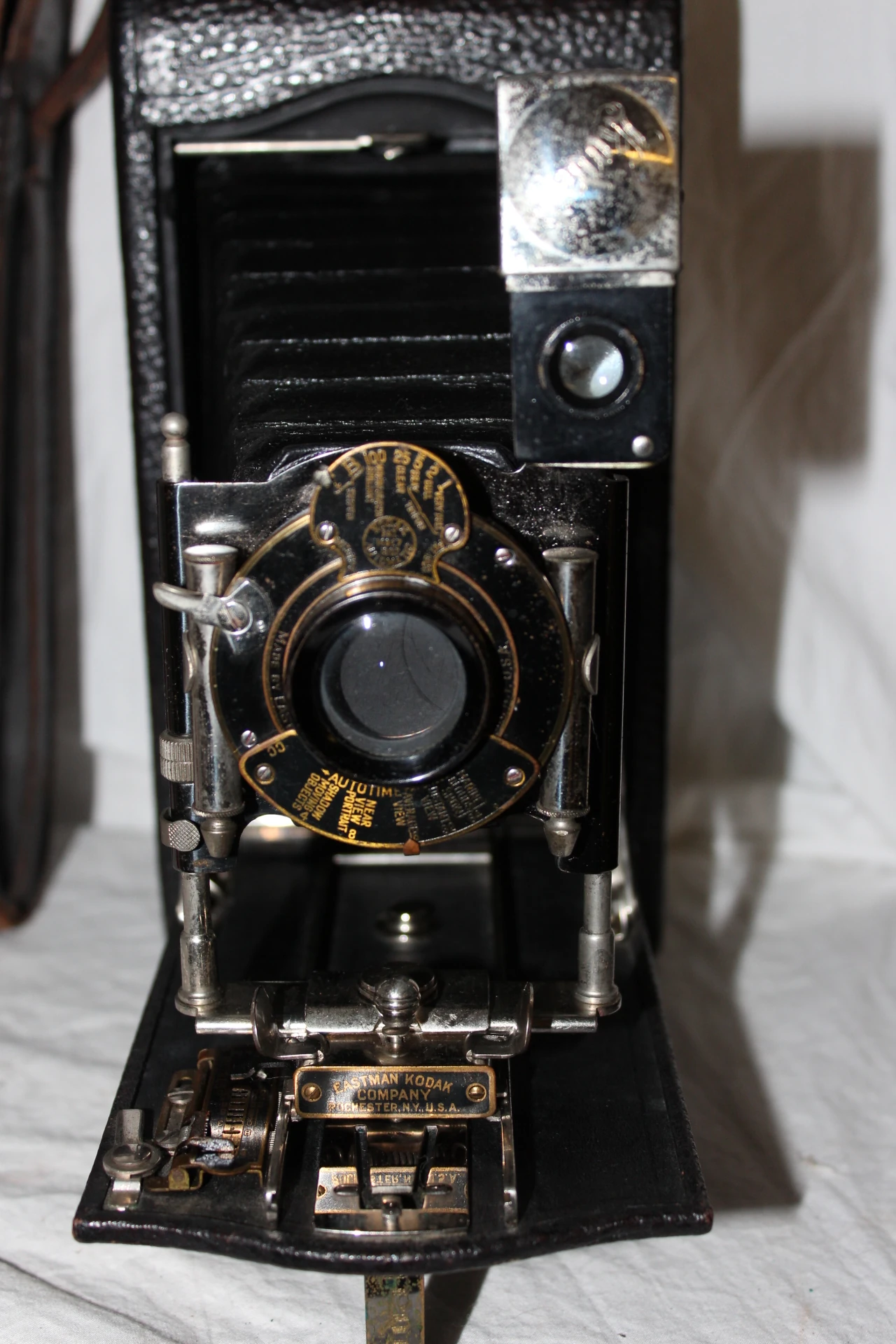

Cameras 008

Kodak No 3A Folding Pocket Camera,

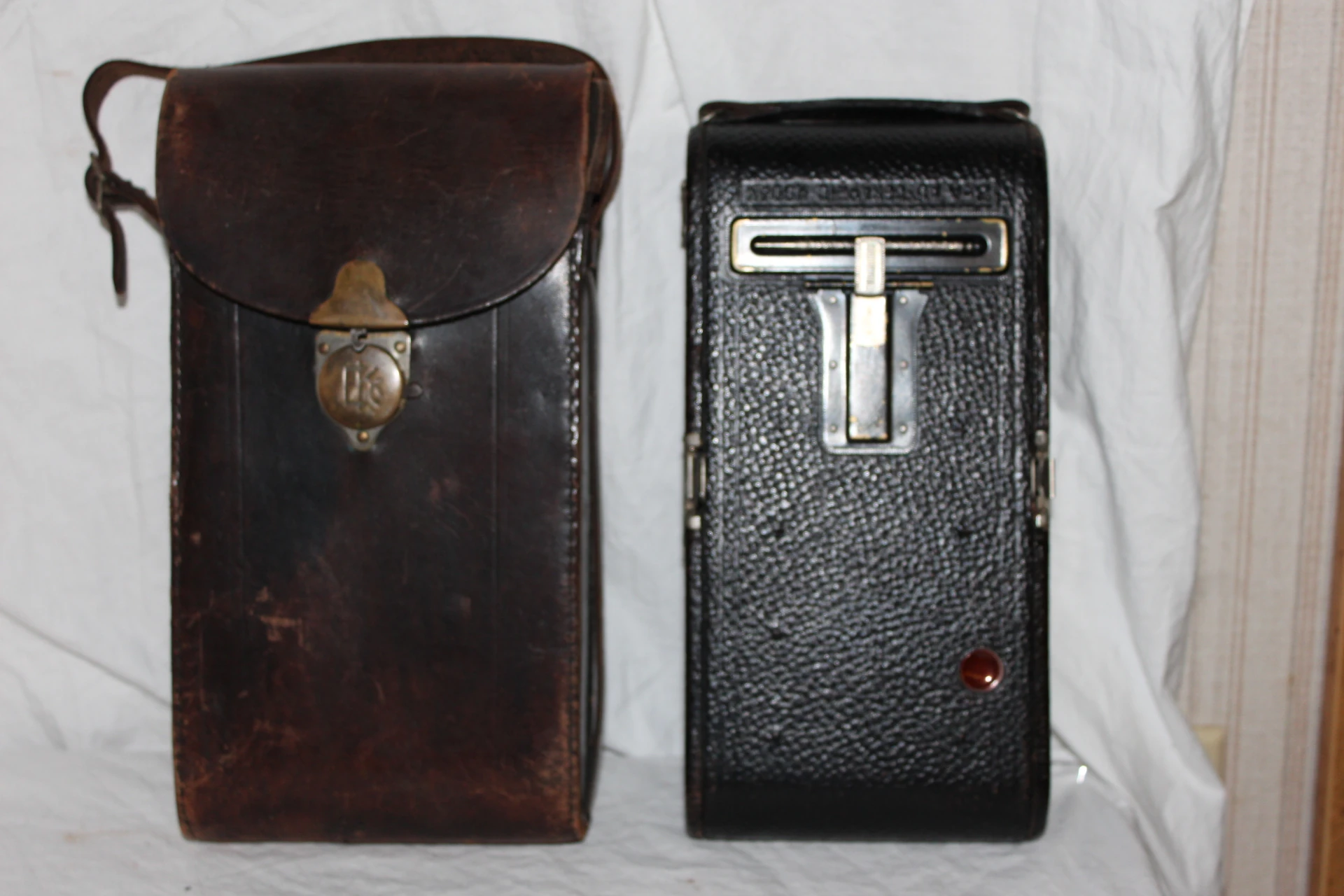

Cameras 013

Autographic Back with stylus and Case!
