Retinette

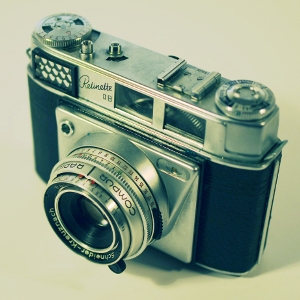

Kodak Retinette IIB

The Kodak Retinette is a series of 35mm viewfinder cameras made in Germany by Kodak AG. They were a budget version of the Retina series, without rangefinders. The "B" models had light meters. The models are difficult to tell apart from a distance, but identifying features include EV numbers above the lens, flash sync slot on lens or body, and distance markings in feet (for UK) or meters (continental Europe). Some models also have a button next to the shutter release that enables double-exposures to be made. Pressing it allows the shutter to be cocked when winding on, without the film moving to the next frame.

Chronological listEdit

Model Typ Body Introduced Withdrawn
Retinette147Folding19391940
Retinette II160Folding19391941
Retinette012Folding19491951
Retinette017Folding19521954
Retinette022Solid19541958
Retinette f022/7Solid19551958
Retinette I030Solid19581959
Retinette I030/9Solid19581958
Retinette f030/7Solid19581959
Retinette II026Solid19581959
Retinette IIB 031Solid19581959
Retinette IA 035Solid19591961
Retinette IA 035/7Solid19591960
Retinette IIA036Solid19591960
Retinette IB 037Solid19601963
Retinette IA 042Solid19621963
Retinette IA 044Solid19631967
Retinette IB 045Solid19631966

Retinettes Edit

All Retinettes have a body serial number.

  • On Typs 147, 160, 012 and early 017 cameras (including French versions of Typ 017) the serial number is located inside the back door adjacent to the film pressure plate.
  • The remaining Retinette cameras have the body serial number engraved on the top housing.

Here is a list of Retinette Typs with lens/shutter combinations:

Pre-war Retinettes

  • Typ 147 - Kodak-Anastigmat 1:6.3 F=5cm lens / AGC-K3 shutter
  • Typ 160 - Kodak-Anastigmat 1:4.5 F=5cm lens / AGC-K4S shutter
  • Typ 160 - Kodak-Anastigmat 1:3.5 F=5cm lens / Compur shutter

Post-war Retinettes

  • Typ 012 - Ennatar f:4.5/50mm lens / PRONTOR-S shutter
  • Typ 012 - Schneider Reomar 1:4.5/50mm lens / Prontor-S shutter
  • Typ 012 - KODAK ANASTIGMAT f:4.5 ANGENIEUX 50mm lens / KODAK B, 1-250 shutter
  • Typ 012 - KODAK ANASTIGMAT f:4.5 ANGENIEUX 50mm lens / KODAK B, 250-1 shutter
  • Typ 017 - Schneider Reomar 1:4.5/50mm lens / Prontor-S shutter
  • Typ 017 - Schneider Reomar 1:4.5/50mm lens / Prontor-SV shutter
  • Typ 017 - KODAK ANASTIGMAT f:4.5 ANGENIEUX 50mm lens / KODAK shutter
  • Typ 017 - KODAK ANASTIGMAT f:3.5 ANGENIEUX 50mm lens / KODAK shutter
  • Typ 022 - Schneider Reomar 1:3.5/45mm lens / Compur-Rapid shutter without EV scale
  • Typ 022 - Schneider Reomar 1:3.5/45mm lens / Compur-Rapid shutter with red on black EV scale
  • Typ 022 - Schneider Reomar 1:3.5/45mm lens / Compur-Rapid shutter with red on chrome EV scale - rectangular lens panel.
  • Typ 022/7 - KODAK ANASTIGMAT F:3.5 ANGENIEUX 45mm lens / Kodak 1 - 1/250 shutter without EV scale
  • Typ 022/7 - KODAK ANASTIGMAT F:3.5 ANGENIEUX 45mm lens / Kodak 1 - 1/250 shutter with EV scale
  • Typ 030 - Schneider Reomar 1:3.5/45mm lens / Compur-Rapid shutter
  • Typ 030/9 - Schneider Reomar 1:3.5/45mm lens / Compur-Rapid shutter/ feet only focus scale / Sonderausfuhrung Made for Kodak Ltd England 1958
  • Typ 030/7 - KODAK ANASTIGMAT F:3.5 ANGENIEUX 45mm lens / Kodak 1 - 1/250 shutter with EV scale
  • Typ 031 - Schneider Reomar 1:2.8/45mm lens / Compur-Rapid 1 - 1/500 shutter with EV scale
