Kodak Duex is a medium format film viewfinder like box camera made by Eastman Kodak Co. Rochester, N.Y., USA and produced between 1940-42. [1], [2]

SpecificationsEdit

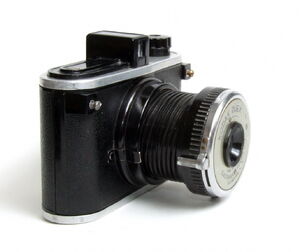

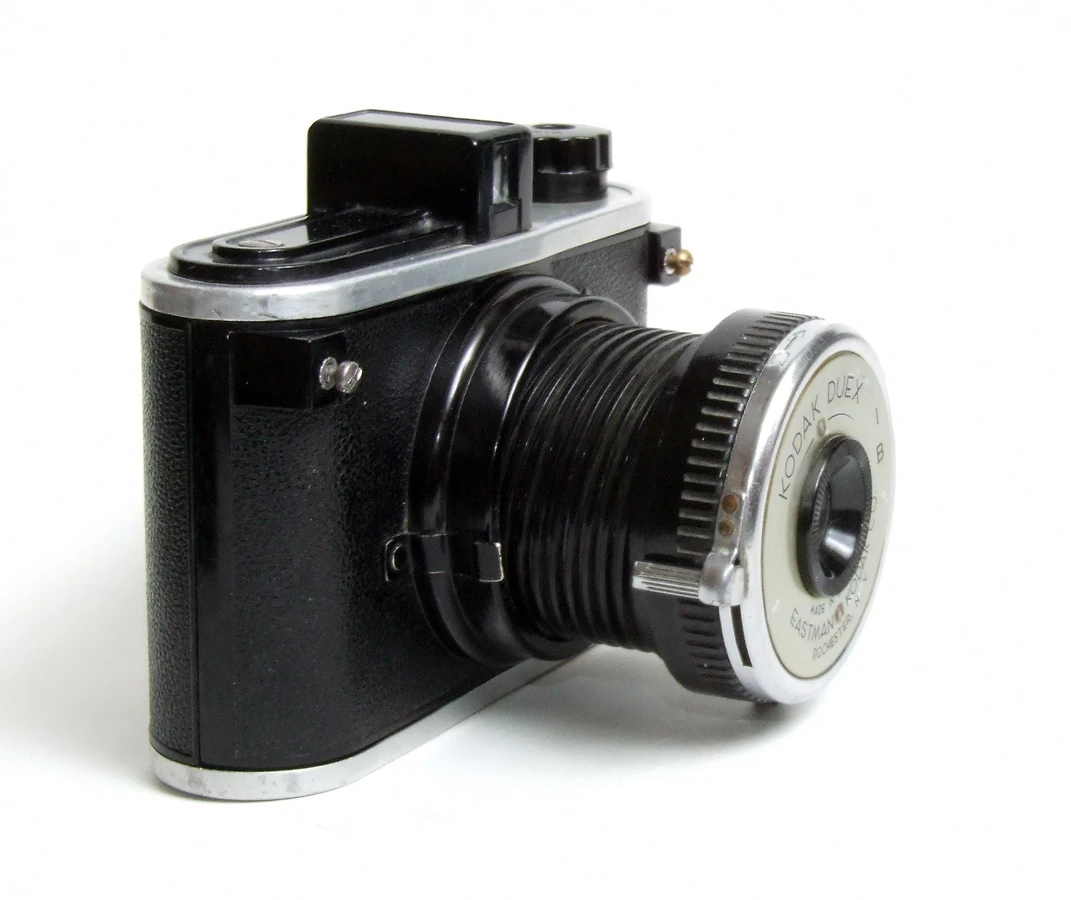

Kodak Duex 03

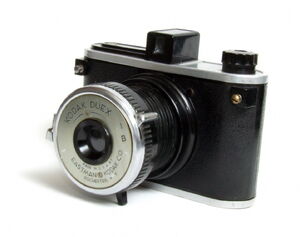

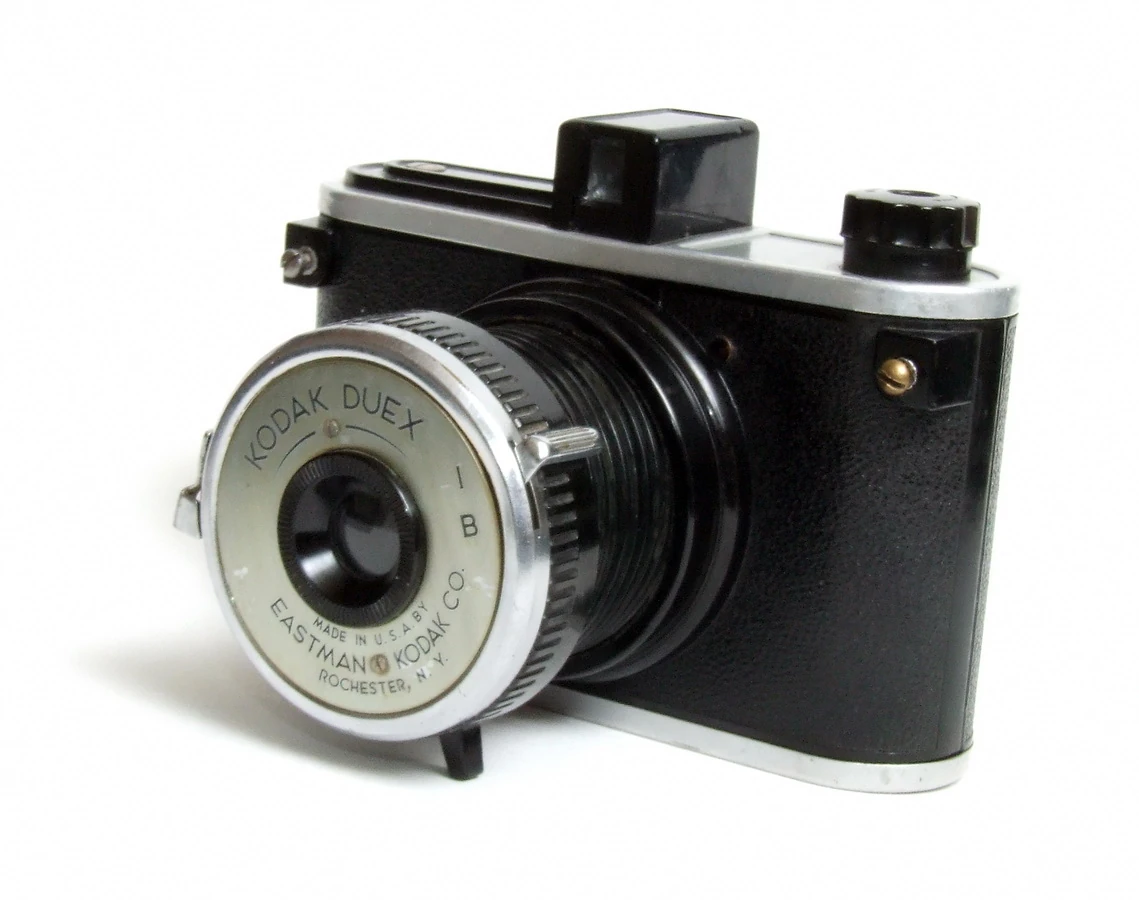

Kodak Duex 02

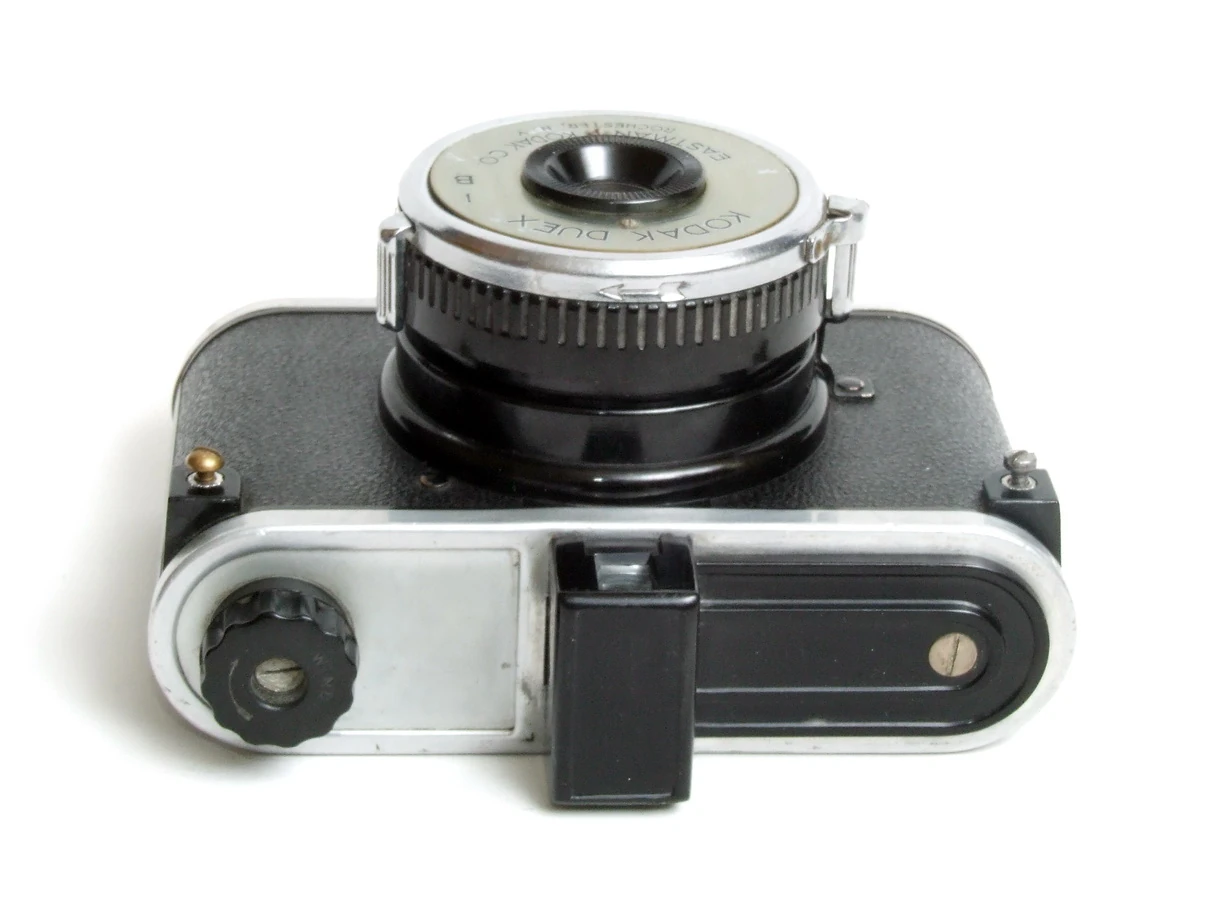

Kodak Duex 05
  • Film: roll 620 film, picture size 4.5x6cm, a pseudo half-frame format for 620 film, takes 16 frames
  • Lens: Kodak Doublet, fixed aperture f/11 , periscopic screw type collapsable
    • Focus range: 6 feet +inf
  • Focusing: fixed focus
  • Shutter: one speed simple spring rotary shutter
    • Speeds: I (instant) 1/30 +B; setting: by a lever on the lens-shutter barrel
  • Cocking lever and Shutter release: by the same lever, with a security handle, on the lens-shutter barrel
    • A mechanical stop prevents the shutter from being depressed until the lens is unscrewed to the taking position.
  • Viewfinder: simple reverse telescopic finder
  • Film advance knob: on the top plate
  • Flash PC socket: none
  • Cold-shoe: none
  • Self-timer: none
  • Back cover: removable, opens by a latch on the bottom plate, w/ red window
  • Camera leg: below the lens-shutter barrel
  • Tripod socket: ¼"
  • Strap lugs: built-in neck strap
  • Body: Bakelite and metal; Weight: 368g
  • Serial no. none

Notes and referencesEdit

  1. Collectors Guide to Kodak Cameras p.111
  2. McKeown's p.491
