Helios-44 is a series of standard lenses for SLR cameras, produced in Soviet Union by KMZ, MMZ, Jupiter from 1958 till 1992 (2001?) and it is considered to be one of most mass produced lenses in the world. Based on the lens Biotar 2 / 58 , at the beginning was called "БТК" - "БиоТар Красногорский" (BioTar Krasnogorski). A fast 6-element anastigmat, it was available in both single-coated and multi-coated versions.


The name of Helios lenses are usually writen as Helios-44X-N, where X -is the index of lens mount (M for m42 thread, K for Pentax K bayonet, Д for Zenit-D bayonet) and N is a optical resolution index 2, 3, 4, 5, 6, 7 (the higher number the higher is an optical resolution of lens).

Technical SpecificationsEdit

Lens-Helios-44m5

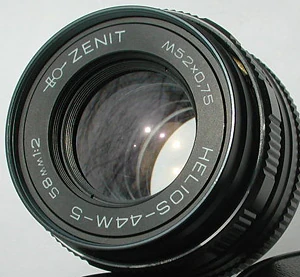

Helios 44M-5 by KMZ

Helios-44-formula

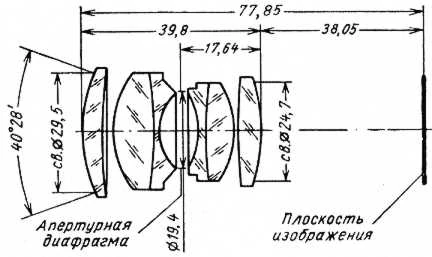

Helios 44. Optical Scheme

  • Focal Distance: 58mm (may vary in real)
  • Optical Formula: 6 elements in 4 groups.
  • Aperture Range: f/2 - f/16. (f/22 later)
  • Angle of View: 40°28
  • Geometric Vignetting: 58%
  • Minimum Focusing Distance
    • Helios-44 (Start) - 0.7 m
    • Helios-44 - 0.5 m
    • Helios-44-N - 0.5 m
    • MC Helios-44X-N - 0.5 m
  • Number of Aperture Blades
    • Helios-44 (Start) - 13
    • Helios-44 -8
    • Helios-44-N -8
    • MC Helios-44X-N - 6
    • MC Helios-44M-7 - 6
  • Filter Diameter:
    • Helios-44 (Start) - M40.5x0.5
    • Helios-44 - M49.5x0.75
    • Helios-44-2 - M49x0.75
    • Helios-44-7 - M49x0.75
    • MC Helios-44X-N - M52x0.75
    • MC Helios-44M-7 -M52x0,75
  • Lens Mount:
    • Helios-44 (Start) - Zenit Start Bayonet
    • Helios-44 - m39 SLR thread
    • Helios-44-2 - m42 thread
    • Helios-44-7 - m42 thread (Originaly designed for the cameras line of ZENIT-7, and because of the special aperture drive system can be installed only on these cameras via an adapter - thread-bayonet ring).
    • MC Helios-44X-N - m42 thread
    • MC Helios-44M-7 - m42 thread
    • MC Helios-44K-4 - Pentax K Bayonet
  • Optical Resolution (center/edge)
    • Helios-44 - 35/14 lines/mm
    • Helios-44-2 - 38/20 lines/mm
    • Helios-44-7 - 36/17 lines/mm
    • Helios-44M-4 - 38/19 lines/mm
  • MC Helios-44K-4 - 42/21 lines/mm
    • MC Helios-44M-4 - 41/20 lines/mm
    • MC Helios-44M-5 - 41/20 lines/mm
    • MC Helios-44M-6 - 45/25 lines/mm
    • MC Helios-44M-7 - 50/30 lines/mm
  • Transmittance
    • Helios-44 - 0.81
    • Helios-44-2 - 0.82
    • Helios-44-7 - 0.80
    • Helios-44M-4 - 0.80
    • MC Helios-44K-4 - 0.85
    • MC Helios-44M-4 - 0.85
    • MC Helios-44M-5 - 0.85
    • MC Helios-44M-6 - 0.90
    • MC Helios-44M-7 - 0.90
  • Color Formula
    • Helios-44 - 10-0-1.5
    • Helios-44-2 - 10-0-1.5
    • Helios-44-7- 10-0-1.5
    • Helios-44M-4 - 10-0-1.5
    • MC Helios-44K-4 - 11-0-0
    • MC Helios-44M-4 - 11-0-0
    • MC Helios-44M-5 - 11-0-0
    • MC Helios-44M-6 - 11-0-0
    • MC Helios-44M-7 - 11-0-0
  • Weight
    • Helios-44 (Start) - 0.23 kg
    • Helios-44 - 0.23 kg
    • Helios-44-2 - 0.23 kg
    • Helios-44-7 - 0.35 kg
  • Helios-44M-4 - 0.3 kg
  • MC Helios-44K-4 - 0.3 kg
    • MC Helios-44M-4 - 0.3 kg
    • MC Helios-44M-5 - 0.27 kg
    • MC Helios-44M-6 - 0.27 kg
    • MC Helios-44M-7 - 0.27 kg

LinksEdit

English

Helios-44M-4 58mm F/2 (M42) Review by FilmISH                                                                                      Helios-44-2 58mm f/2 (M42) Reveiw by BKSPicture
