Falcon Miniature and Falcon Deluxe Miniature are medium format film half frame viewfinder like box cameras made by the Utility Manufacturing Company, NewYork, USA and produced in c.1939. [1]

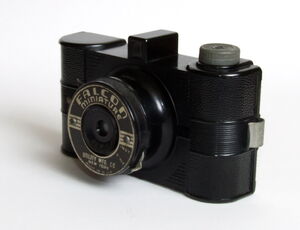

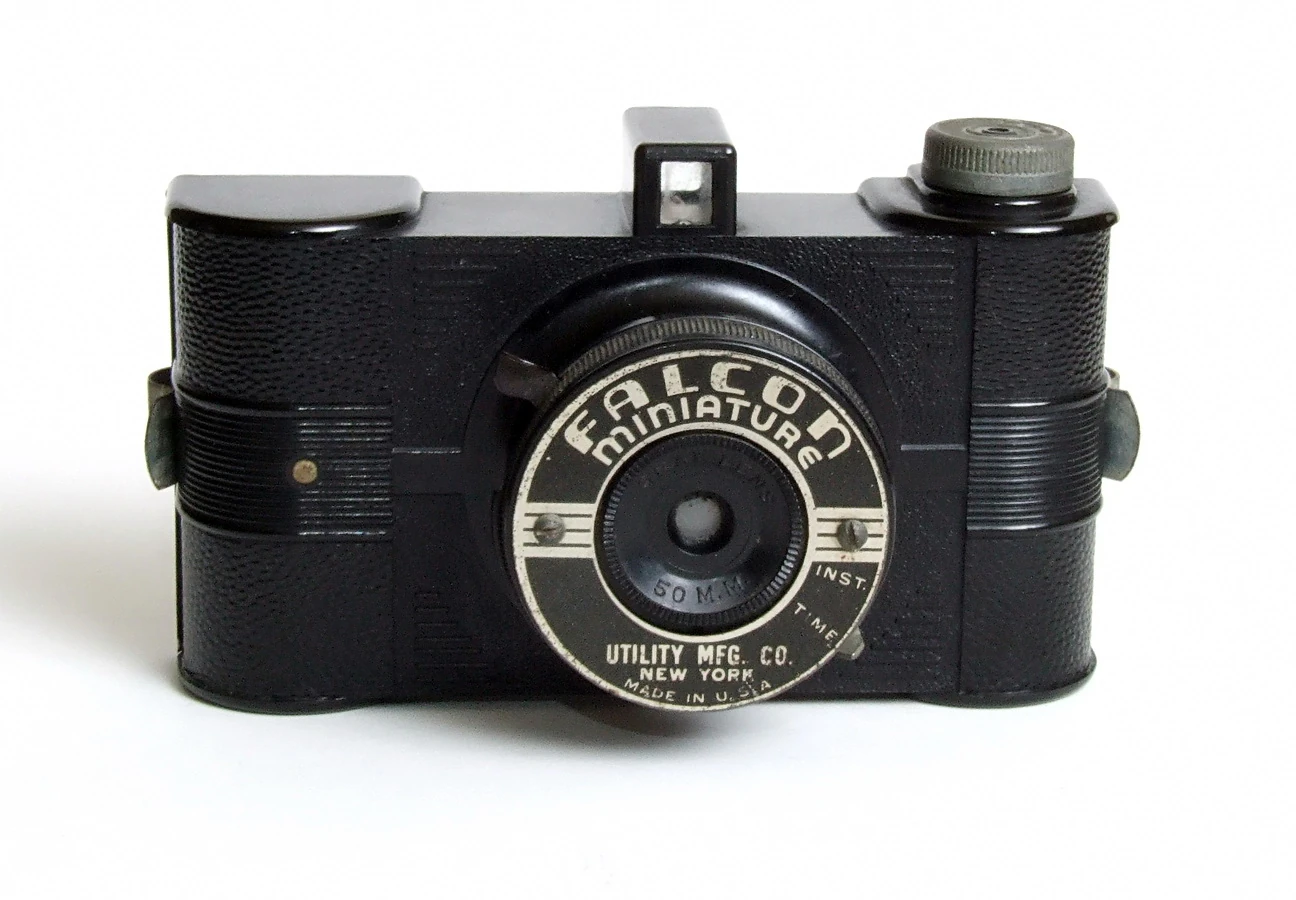

Falcon Miniature 01

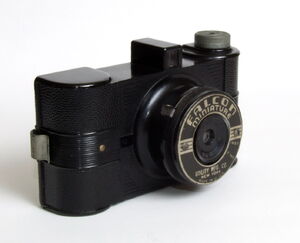

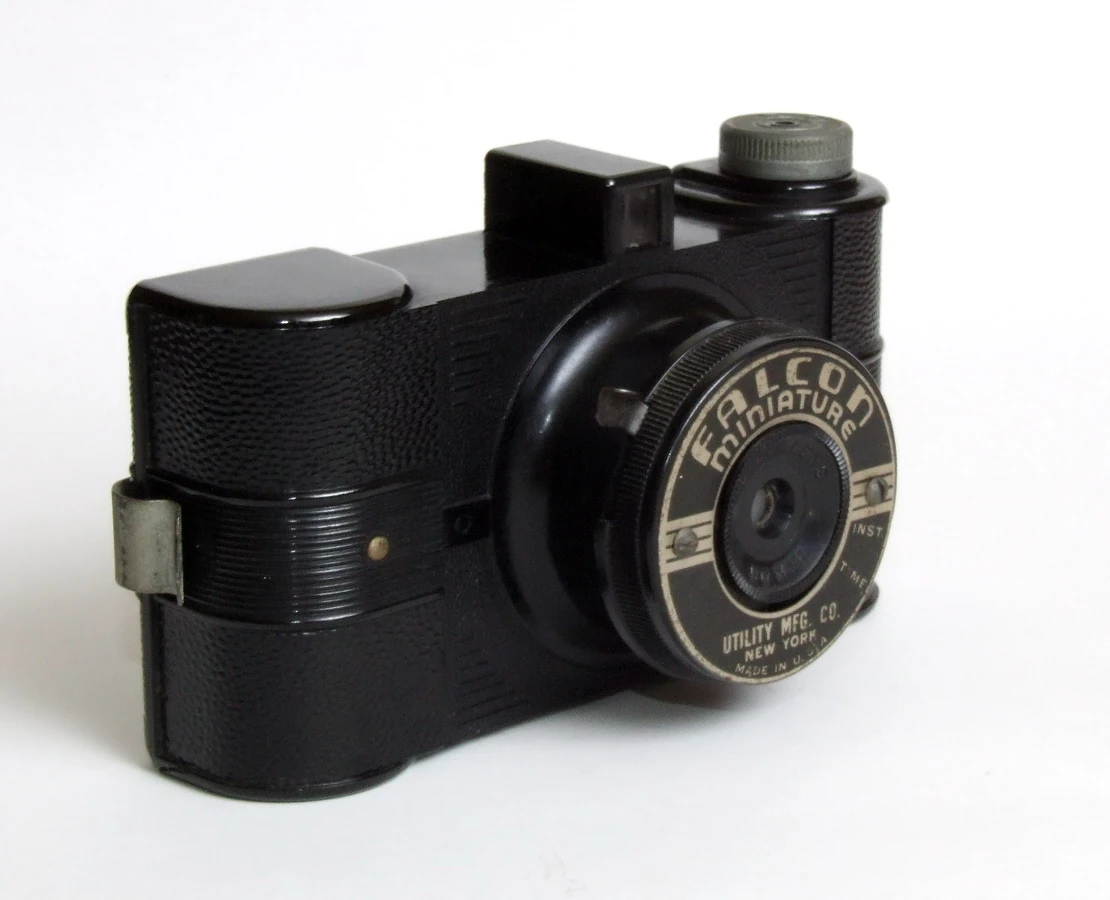

Falcon Miniature 03

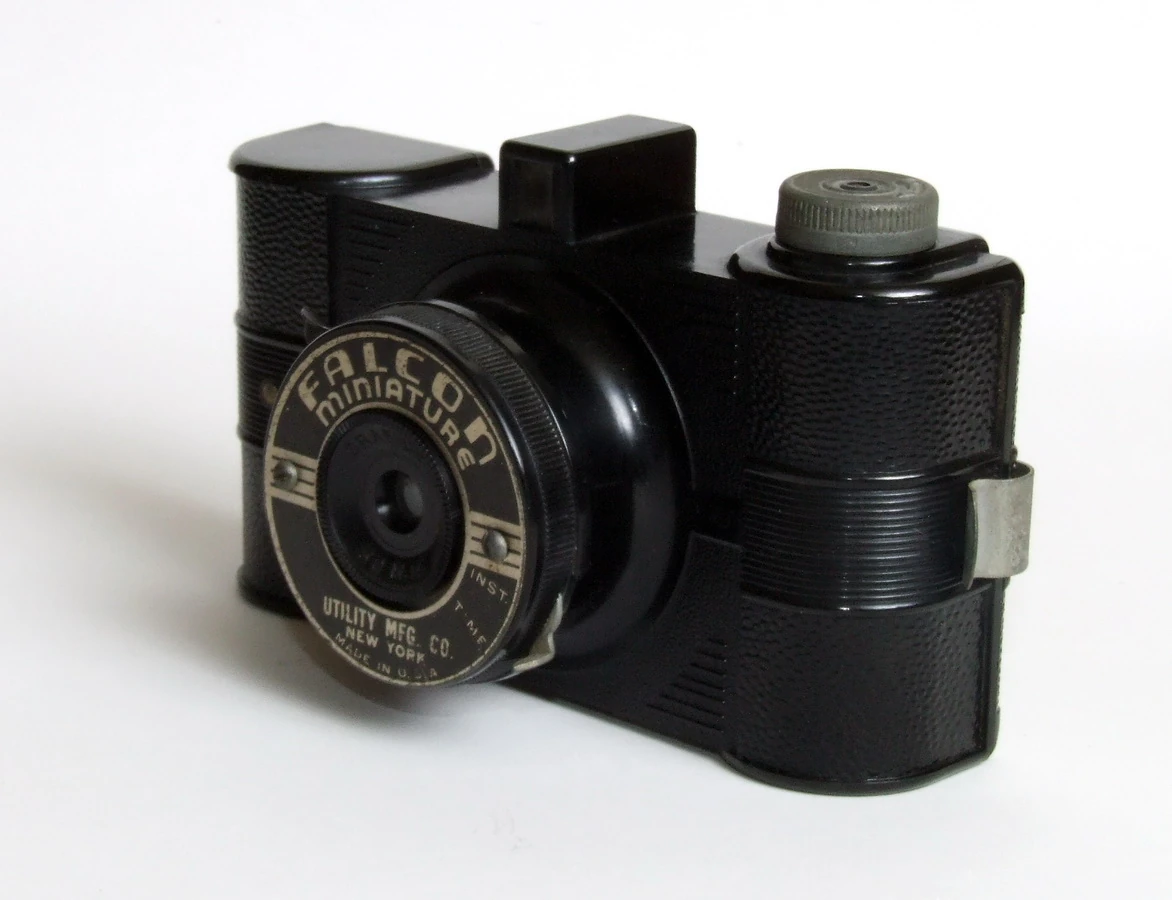

Falcon Miniature 02

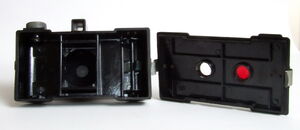

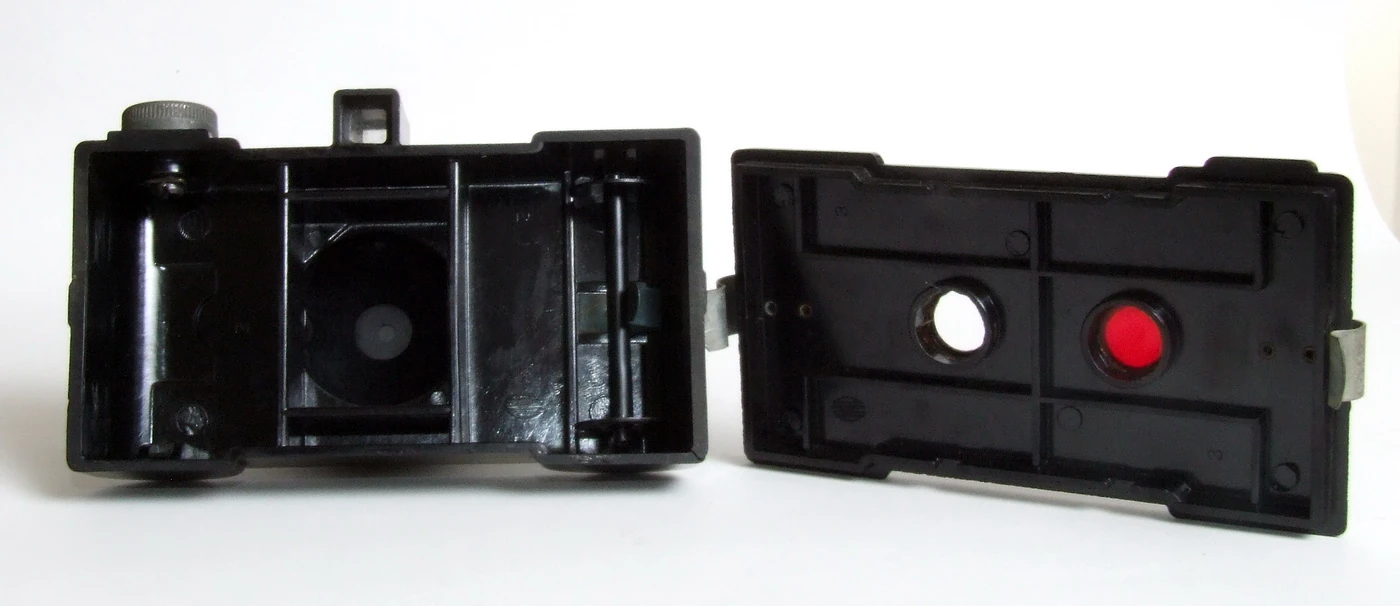

Falcon Miniature 07

The body was made of Bakelite, and styled like the 35mm Argus A.

Similar cameras were sold as the Carlton, Falcon Midget, Falcon Minette, Rex Miniature, and others. Different body moldings, lenses and faceplates, and viewfinder styles all appeared under the Falcon Miniature name.

The Falcon body style of the version in the photos at right hand (with horizontal ribbing) is a clear design inspiration for the Lomographic Sprocket Rocket.

SpecificationsEdit

Data belongs to the version in the photos at right hand.

  • Film: roll 127 film, picture size: half frame, 3x4cm
  • Lens: Graf 50mm, serial no. none
    • Aperture: fixed aperture f/
    • Focusing: fixed focus
  • Shutter: simple spring rotary shutter, one speed 1/25 +B; setting: Time and Instant, lever on the lens-shutter barrel
  • Cocking lever and shutter release: by the same lever, on the lens-shutter barrel
  • Viewfinder: simple optical finder
  • Winding knob: on the top plate
  • Flash PC socket: none
  • Cold-shoe: none
  • Self-timer: none
  • Back cover: removable, w/ two red windows; opens by the latches on the sides of the camera
  • There is a spare film compartment in the camera
  • Tripod socket: none
  • Strap lugs: none
  • Body: Bakelite; Weight: 148g
  • Serial no. none

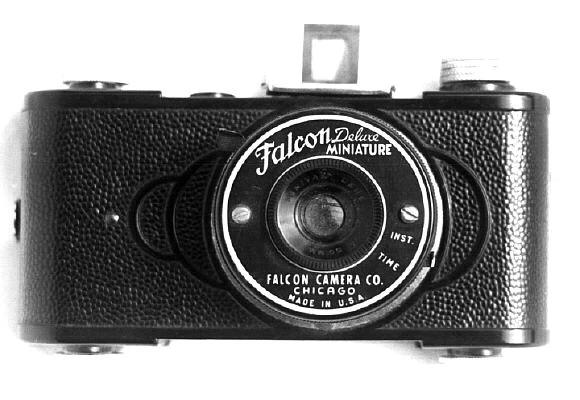

Falcon deluxe
Delux Miniature with frame finder

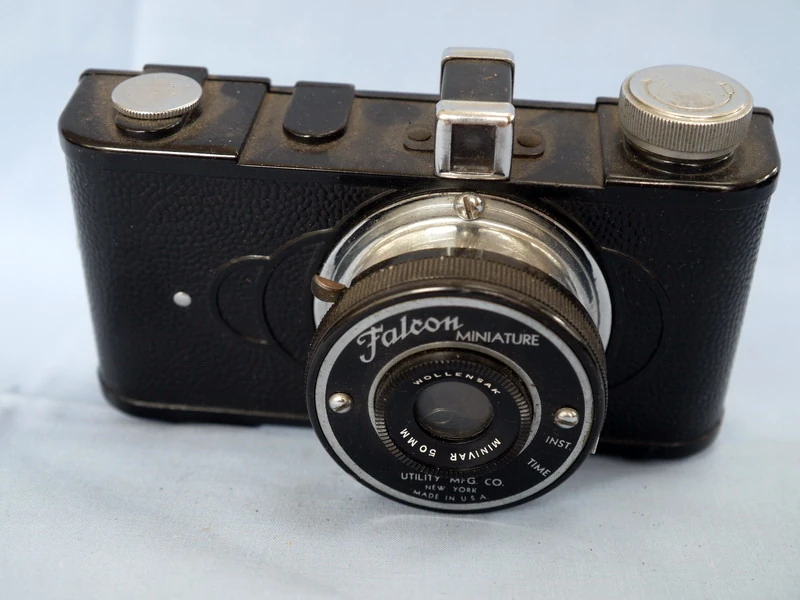

Falcon
Braun body

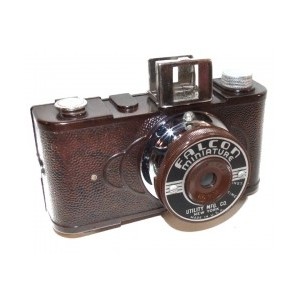

Mini frame finder
With frame finder

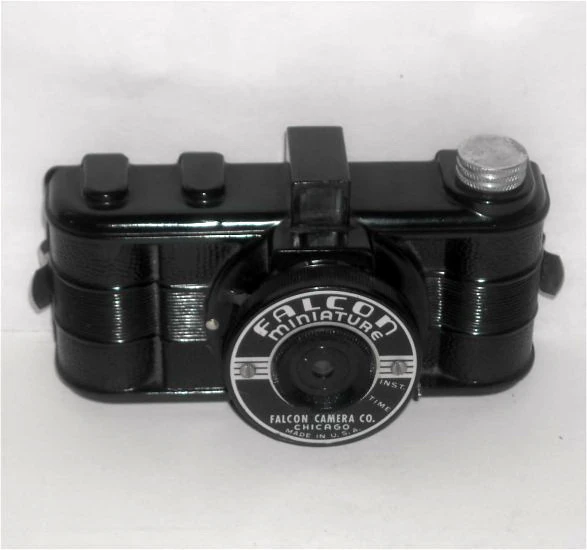

Fal mini
Different body version

Notes and referencesEdit

  1. McKeown's pp.942-43
