Canon EOS 60D

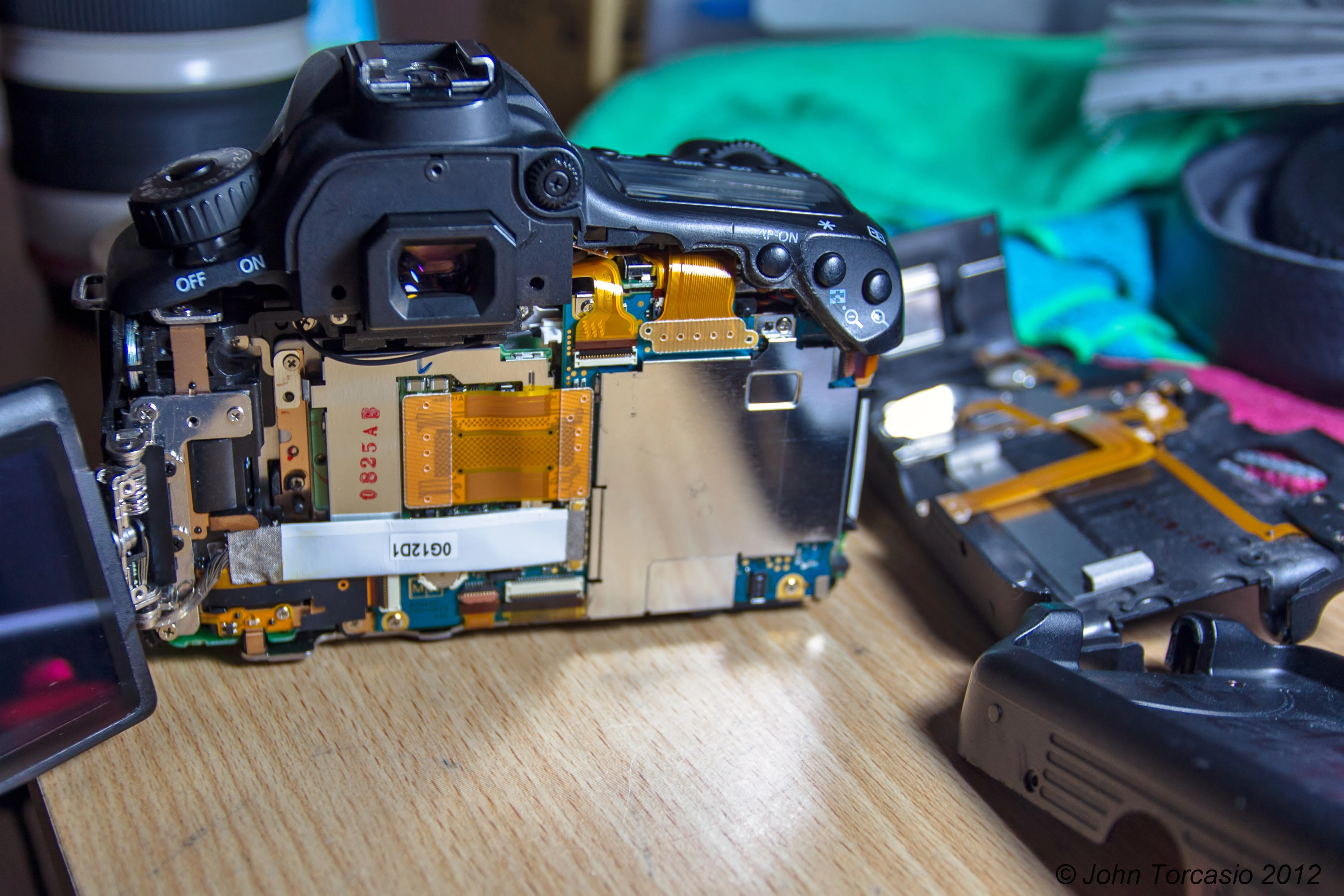

Canon EOS 60D with Back cover removed

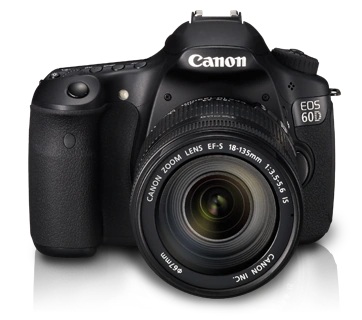

CANON EOS 60D Canon EF-S 18-135mm f/3.5-5.6 IS Lens

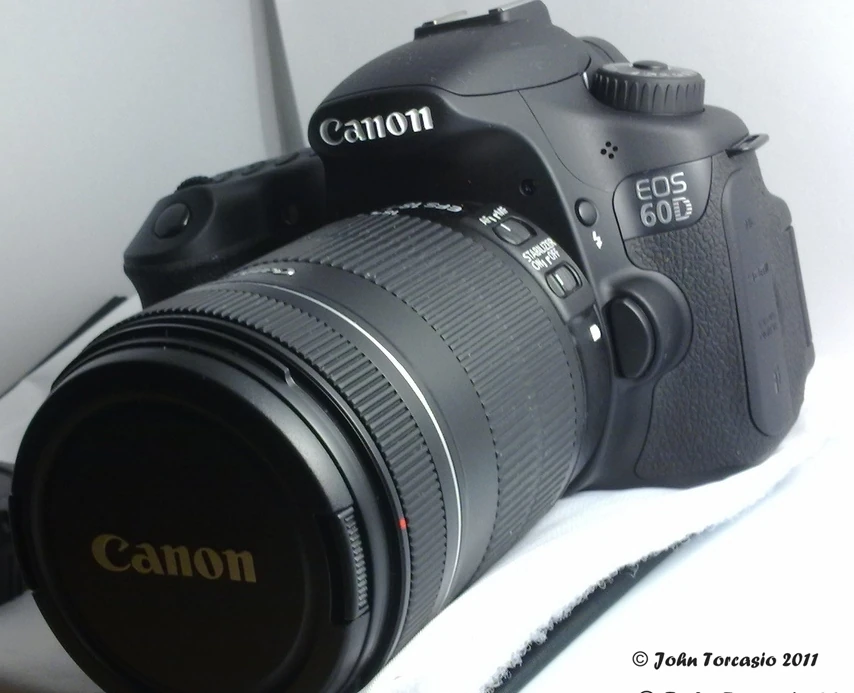

Canon 60D

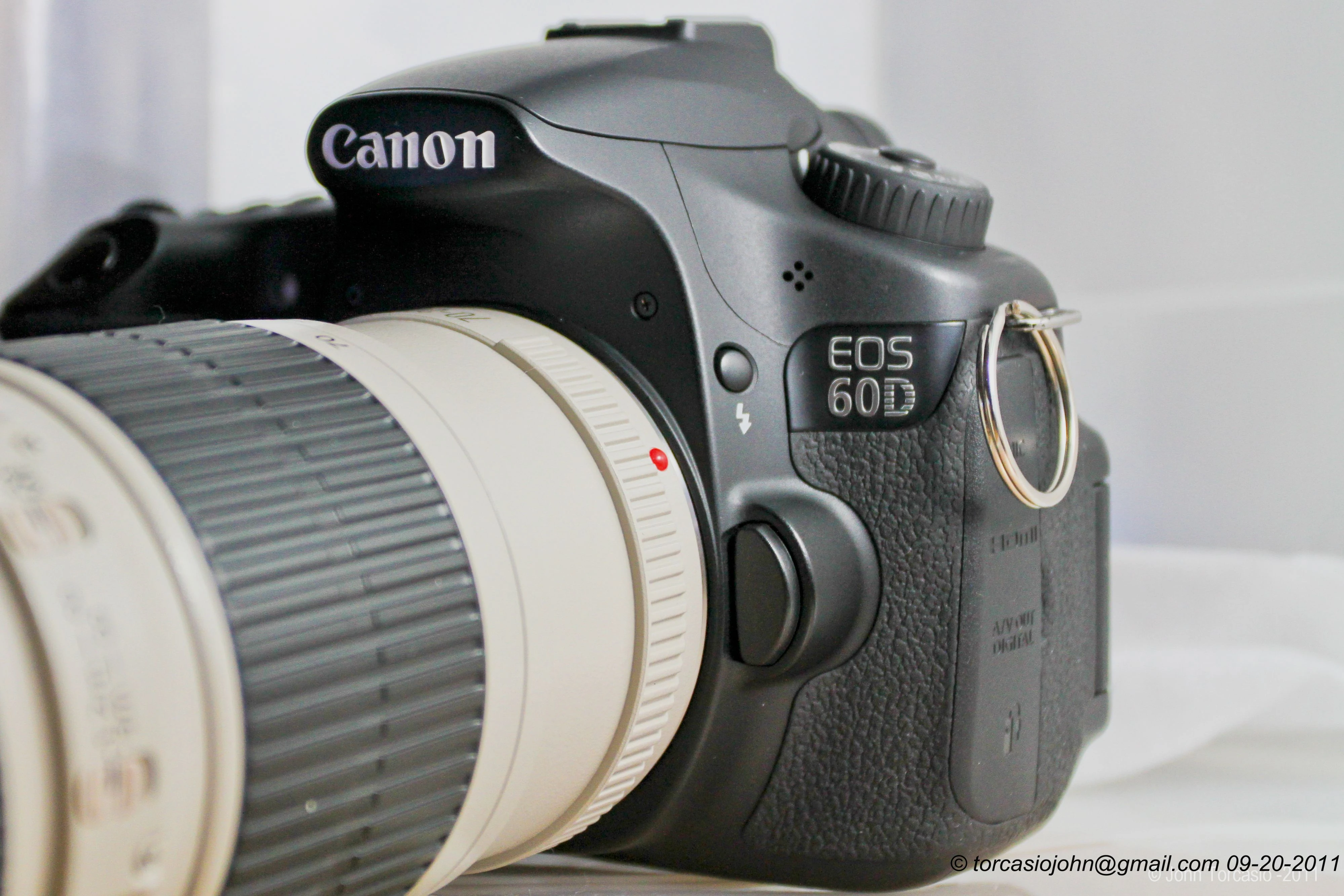

CANON EOS 60D EF 70-200mm L USM Lens

Canon EOS 60D is a digital SLR camera, manufactured by Canon and inroduced in 2010.

Designed to realize your perfect shot, the 60D’s pairing of two state-of-the-art sensor and image processor allows it to capture action at a slick 5.3fps while the shutter speed range of 1/8000 sec ensures that nothing escapes your vision.

The EOS 60D support high-capacity SDXC memory cards, providing up to 2TB of available space, allowing photographers to keep shooting HD video and full resolution RAW and JPEG stills without changing cards. For better management of larger image libraries on the camera, EOS 60D photographers can add a rating of 1 to 5 to their favourite images, allowing them to be easily located and viewed on-screen. Once transferred from the camera to a PC, the tags can also be viewed using a number of image editing and management programs, including Canon’s DPP software.

  • 18.0 megapixel APS-C size CMOS sensor
  • 3-inch wide Vari-Angle LCD
  • In-camera post processing


Specifications for EOS 60D (Body)Edit

Type Digital, single-lens reflex, AF / AE camera with built-in flash
Recording media SD memory card, SDHC memory card, SDXC memory card
Image sensor size 22.3 x 14.9mm
Compatible lenses Canon EF lenses (including EF-S lenses)

(35mm-equivalent focal length is approx. 1.6 times the lens focal length)

Lens mount Canon EF mount
Image Sensor
Type CMOS sensor
Effective pixels Approx. 18.00 megapixels
Aspect ratio 3:2
Dust delete feature Auto, Manual, Dust Delete Data appending
Recording System
Recording format Design rule for Camera File System 2.0
Image type JPEG, RAW (14-bit Canon original)

RAW + JPEG simultaneous recording possible

Recorded pixels Large: Approx. 17.90 megapixels (5184 x 3456)
Medium: Approx. 8.00 megapixels (3456 x 2304)
S1 (Small 1): Approx. 4.50 megapixels (2592 x 1728)
S2 (Small 2): Approx. 2.50 megapixels (1920 x 1280)
S3 (Small 3): Approx. 350,000 pixels (720 x 480)
RAW: Approx. 17.90 megapixels (5184 x 3456)
M-RAW: Approx. 10.10 megapixels (3888 x 2592)
S-RAW: Approx. 4.50 megapixels (2592 x 1728)
Create / Select a folder Possible
Image Processing
Picture style Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Def. 1 - 3
Basic+ Shoot by ambience selection, Shoot by lighting or scene type
White balance Auto, Preset (Daylight, Shade, Cloudy, Tungsten light, White fluorescent light, Flash), Custom, Colour temperature setting (Approx. 2500 - 10000K),

white balance correction, and white balance bracketing possible

  • Colour temperature information transmission enabled.
Noise reduction Applicable to long exposures and high ISO speed shots
Automatic image brightness correction Auto Lighting Optimizer
Highlight tone priority Provided
Lens peripheral illumination correction Provided
Type Eye-level pentaprism
Coverage Vertical / Horizontal approx. 96%

(with Eye point approx. 22mm)

Magnification Approx. 0.95x (-1m-1 with 50mm lens at infinity)
Eye point Approx. 22mm (From eyepiece lens center at -1m-1)
Built-in dioptric adjustment -3.0 - +1.0m-1 diopter
Focusing screen Interchangeable (Two types sold separately), Ef-A provided
Electronic level Horizontal level displayed up to ±9° in ±1° increments

(For horizontal shooting only)

Mirror Quick-return type
Depth-of-field preview Provided
Type TTL secondary image-registration, phase detection
AF points 9 (All cross-type)
Metering range EV -0.5 - 18 (at 23°C / 73°F, ISO 100)
Focusing modes One-Shot AF, AI Servo AF, AI Focus AF, Manual focusing (MF)
AF-assist beam Small series of flashes fired by built-in flash
Exposure Control
Metering modes 63-zone TTL full aperture metering

• Evaluative metering (linked to all AF points) • Partial metering (Approx. 6.5% of viewfinder at center) • Spot metering (Approx. 2.8% of viewfinder at center) • Center-weighted average metering

Metering range EV 0 - 20 (at 23°C / 73°F with EF50mm f/1.4 USM lens, ISO 100)
Exposure control Program AE (Full Auto, Flash Off, Creative Auto, Portrait, Landscape, Close-up, Sports, Night Portrait, Program), shutter-priority AE, aperture-priority AE, manual exposure, bulb exposure
ISO speed

(Recommended exposure index)

Basic Zone modes: ISO 100 - 3200 set automatically
Creative Zone modes: ISO 100 - 6400 set manually

(1/3-stop increments), ISO 100 - 6400 set automatically, or ISO expansion to “H” (equivalent to ISO 12800)

Exposure compensation Manual: ±5 stops in 1/3- or 1/2-stop increments
AEB: ±3 stops in 1/3- or 1/2-stop increments

(Can be combined with manual exposure compensation)

AE lock Auto: Applied in One-Shot AF mode with evaluative metering when focus is achieved
Manual: By AE lock button
Type Electronically-controlled, focal-plane shutter
Shutter speeds 1/8000sec. to 1/60sec. (Full Auto mode),

Flash X-sync at maximum 1/250sec. 1/8000sec. to 30secs., bulb (Total shutter speed range. Available range varies by shooting mode.)

Built-in flash Retractable, auto pop-up flash
Guide No.: Approx. 13 / 43 (ISO 100, in meters / feet)
Flash coverage: Approx. 17mm lens angle of view
Recycling time approx. 3secs.

Wireless master unit function provided

External flash EX-series Speedlite (Flash functions settable with the camera)
Flash metering E-TTL II autoflash
Flash exposure compensation ±3 stops in 1/3- or 1/2-stop increments
FE lock Provided
PC terminal None
Drive System
Drive modes Single, High-speed continuous, Low-speed continuous, 10-sec. self-timer / remote control, 2-sec. self-timer / remote control
Continuous shooting speed Max. approx. 5.3shots/sec.
Max. burst JPEG Large / Fine: Approx. 58 shots
RAW: Approx. 16 shots
RAW + JPEG Large / Fine: Approx. 7 shots
* Figures are based on Canon’s testing standards (ISO 100 and Standard Picture Style) and a 4GB card.
Live View Shooting
Aspect ratio settings 3:2, 4:3, 16:9, 1:1
Focusing Live mode, Face detection Live mode (Contrast detection)

Quick mode (Phase-difference detection) Manual focusing (Approx. 5x / 10x magnification possible)

Metering modes Evaluative metering with the image sensor
Metering range EV 0 - 20 (at 23°C / 73°F with EF50mm f/1.4 USM lens, ISO 100)
Silent shooting Provided (Mode 1 and 2)
Grid display Two types
Movie Shooting
Movie compression MPEG-4 AVC / H. 264

Variable (average) bit rate

Audio recording format Linear PCM
Recording format MOV
Recording size and frame rate 1920 x 1080 (Full HD): 30p / 25p / 24p
1280 x 720 (HD): 60p / 50p
640 x 480 (SD): 60p / 50p
Crop 640 x 480 (SD): 60p / 50p
* 30p: 29.97fps, 25p: 25.00fps, 24p: 23.976fps,

60p: 59.94fps, 50p: 50.00fps

File size 1920 x 1080 (30p / 25p / 24p): Approx. 330MB/min.
1280 x 720 (60p / 50p): Approx. 330MB/min.
640 x 480 (60p / 50p): Approx. 165MB/min.
Crop 640 x 480 (60p / 50p): Approx. 165MB/min.
Focusing Same as focusing with Live View shooting
Metering modes Center-weighted average and evaluative metering with the image sensor

  • Automatically set by the focusing mode.
Metering range EV 0 - 20 (at 23°C / 73°F with EF50mm f/1.4 USM lens, ISO 100)
Exposure control Program AE (exposure compensation possible) for movies, manual exposure
Exposure compensation ±3 stops in 1/3-stop increments (Still photos: ±5 stops)
ISO speed

(Recommended exposure index)

Automatically set within ISO 100 - 6400

With manual exposure, ISO 100 - 6400 set automatically / manually

Sound recording Built-in monaural microphone

External stereo microphone terminal provided Sound recording level adjustable, wind filter provided

Grid display Two types
LCD Monitor
Type TFT colour, liquid-crystal monitor
Monitor size and dots Wide, 3.0-in. (3:2) with approx. 1.04 million dots
Coverage Approx.100%
Angle adjustment Possible
Brightness adjustment Manual (7 levels)
Electronic level Horizontal level displayed in 1° increments
Interface languages 25
Image Playback
Image display formats Single image, Single image + Info (Basic info, detailed info, histogram),

4-image index, 9-image index, image rotate possible

Zoom magnification Approx. 1.5x - 10x
Image browsing methods Single image, jump by 10 or 100 images, by shooting date, by folder,

by movie, by stills, by rating

Highlight alert Overexposed highlights blink
Slide show All images, by date, by folder, movies, stills, or by rating

Three transition effects selectable

Movie playback Enabled (LCD monitor, video / audio OUT, HDMI OUT)

Built-in speaker

Post-Processing of Images
In-camera RAW image processing Brightness adjustment, white balance, Picture Style, Auto Lighting Optimizer, noise reduction at high ISO speeds, JPEG recording quality, colour space, peripheral illumination correction, distortion correction, and chromatic aberration correction
Creative filters Grainy B&W, Soft focus, Toy camera effect, Miniature effect
Resize Possible
Ratings Provided
Direct Printing
Compatible printers PictBridge-compatible printers
Printable images JPEG and RAW images
Print ordering DPOF Version 1.1 compatible
Custom Functions
Custom functions 20
Camera user settings Register under Mode Dial’s C
My Menu registration Possible
Copyright information Entry and inclusion enabled
Audio / Video OUT / Digital terminal Analog video (Compatible with NTSC / PAL) / stereo audio output for personal computer communication and direct printing (Hi-Speed USB equivalent)
HDMI mini OUT terminal Type C (Auto switching of resolution), CEC-compatible
External microphone IN terminal 3.5mm dia. stereo mini-jack
Remote control terminal For Remote Switch RS-60E3
Wireless remote control Remote Controller RC-6
Battery Battery Pack LP-E6 (Quantity 1)

  • AC power can be supplied via AC Adapter Kit ACK-E6
  • With Battery Grip BG-E9 attached, size-AA / LR6 batteries can be used
Battery information Remaining capacity, Shutter count, and Recharge performance displayed
Battery life

(Based on CIPA testing standards)

With viewfinder shooting: Approx. 1100 shots at 23°C / 73°F,

approx. 1000 shots at 0°C / 32°F

With Live View shooting: Approx. 320 shots at 23°C / 73°F,

approx. 280 shots at 0°C / 32°F

Movie shooting time Approx. 2 hours at 23°C / 73°F

Approx. 1hr. 40mins. at 0°C / 32°F (With a fully-charged Battery Pack LP-E6)

Dimensions and Weight
Dimensions (W x H x D) Approx. 144.5 x 105.8 x 78.6mm / 5.7 x 4.2 x 3.1in.
Weight Approx. 755g / 26.6oz. (CIPA Guidelines)

Approx. 675g / 23.8oz. (Body only)

Operating Environment
Working temperature range 0°C - 40°C / 32°F - 104°F
Working humidity 85% or less
All the specifications above are based on Canon’s testing standards. Accessories subject to availability.
The camera’s specifications and physical appearance are subject to change without notice.
