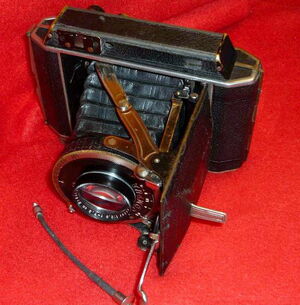

Rifax 1938

Rifax 6x9 rangefinder 1937

Rifax is a medium format film folding bed camera made by Beier and introduced in c.1935.

Rifax rangefinder 1937

Rifax 4.5x6 rangefinder 1937

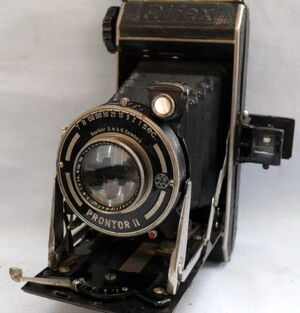

Rifax 1936

Rifax 1936

Rifax 01

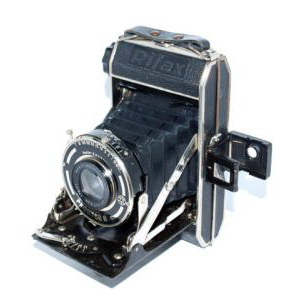

Rifax 4.5x6 1936

VersionsEdit

All versions have slightly modified models also

Rifax 4.5x6 1936Edit

  • Similar to he Beier Precisa but has radial focusing lever and no f/4.5 lenses
  • Film 120 roll, picture size 6x9 and 4.5x6 with a mask
  • Lens: Rodenstock Trinar 75mm f/3.5 [1]
  • Shutter: Prontor II with speeds 1-1/250 +T & B
  • Cable release socket on the shutter
  • Folding sports frame finder and waist level brilliant finder
  • Two tripod socket, 3/8"

Some cameras have no name, with Laak Pololyt 110mm f/3.9 lens in Compur shutter.[2]

Rifax 4.5x6 rangefinder 1936Edit

  • Similar to Rifax 1936, but with a coupled rangefinder
  • Same lens/shutter combinations
  • There were slightly modified versions also.

Rifax 6x9 1936Edit

  • Film 120 roll, picture size 6x9 and 4.5x6 with a mask
  • Radial focusing lever
  • Early models have rounded body and later models (c.1937) have squared body
  • With or without body release
  • Lens: Actinar 105mm f/4.5 (the cameras with Elmar lens are very expensive)
  • Shutter: Prontor
  • Vauxhall 6x9 is a name variant
  • It was also sold as Rodenstock Citoklapp (1937).

Rifax 6x9 rangefinder 1937Edit

  • Same with Rifax 6x9, but with coupled rangefinder
  • Film 120 roll, picture size 6x9 and 4.5x6 with a mask
  • Lens: Schneider Xenar 75mm f/2.8
  • Shutter: Compur-Rapid with speeds 1-1/400 +T & B
  • Coupled rangefinder
  • With or without body release
  • Bellows: self-erected

Notes and referencesEdit

  1. All models were offered various lens/shutter combinatios. This data is for example.
  2. no name in Beier-kamera

LinksEdit

  • in Beier-Kamera by Thomas Knorre [1], [2]
