Lotte II

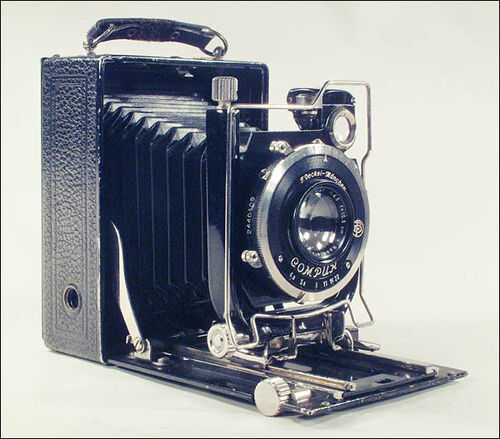

Lotte II image by Thomas Knorre

Lotte is a series of folding plate film cameras made by Beier. They have basic single extension bellows and with wooden bodies. After about 1930s, the bodies were metal. [1]

ModelsEdit

Lotte IEdit

  • Produced between c.1925-30
  • Film: Plate, Filmpack or Plane film,
  • Formats: 6.5x9, 9x12cm, 10x15cm and 3 1/4 x 4 1/4 inch (1/4 plate English format) models
  • Lens: Doppel-Anastigmat Selar 105mm f/4.5 [2]
  • Aperture: f/4.5-f/36
  • Shutter: Vario 1/25-1/100 +T & B
  • Viewfinder: ground-glass plate, waist level brilliant finder and wire frame sports finder
  • Vertical and horizontal moving lens standard
  • Rack and pinion focusing
  • Bellows: Double extension
  • Two 3/8" tripod sockets

Lotte IIEdit

  • Produced between c.1928-38
  • Film: Plate, Filmpack or Plane film,
  • Formats: 6.5x9cm, 9x12cm and 10x15cm models
  • Lens: Rodenstock Trinar-Anastigmat 105mm f/4.5
  • Aperture: f/4.5-f/22
  • Shutter: Compur 1-1/250 +T & B
  • Viewfinder: ground-glass plate, waist level brilliant finder and wire frame sports finder
  • Vertical and horizontal moving lens standard
  • Bellows focusing
  • Two 3/8" tripod sockets

Notes and referencesEdit

  1. McKeown's p.119
  2. It was offered many lens/shutter combinations that usual at its times. This data is for example.
