Balda Baldinette II

5,978pages on
this wiki
Talk0
Balda Baldinette II 03
Balda Baldinette II 02
Balda Baldinette II 05

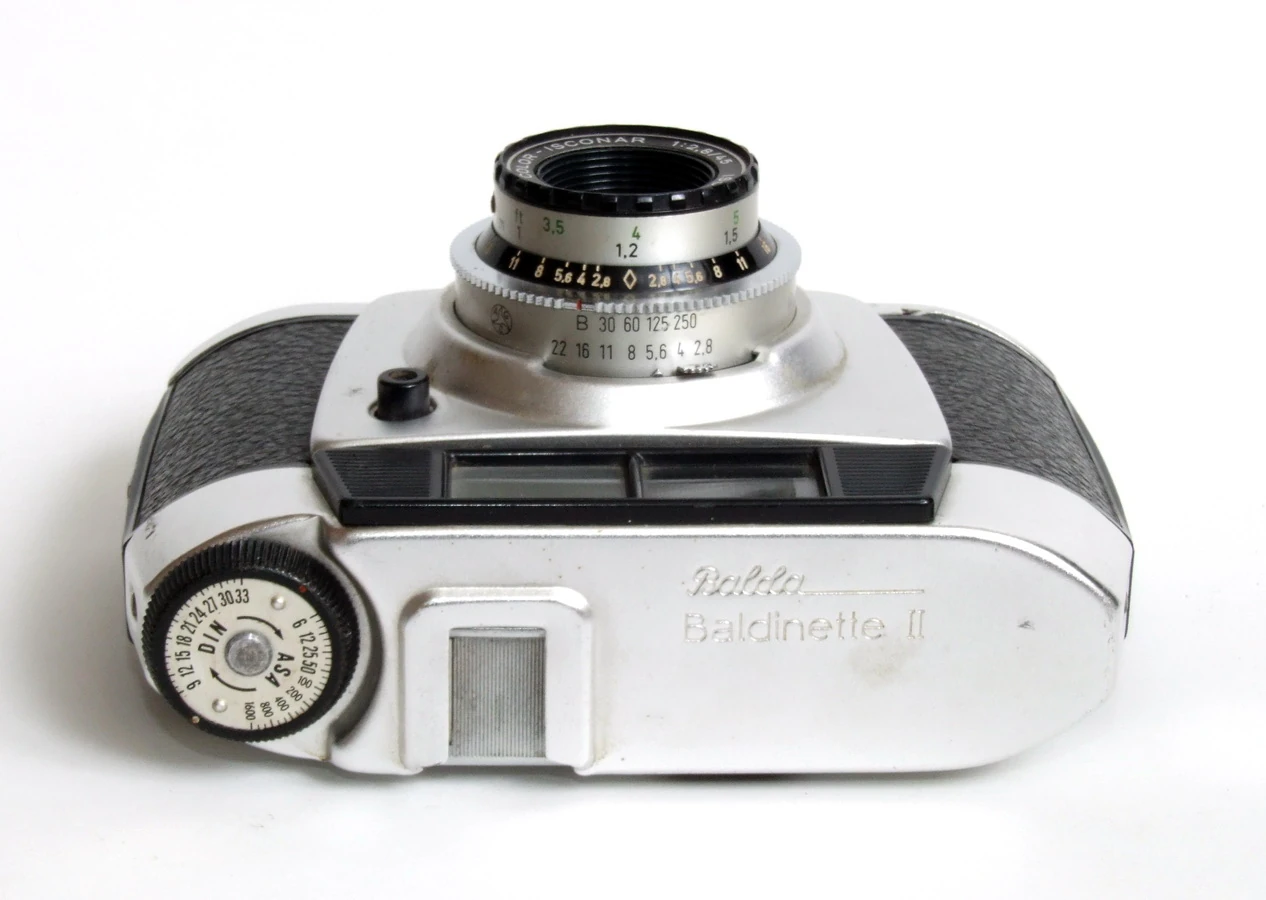

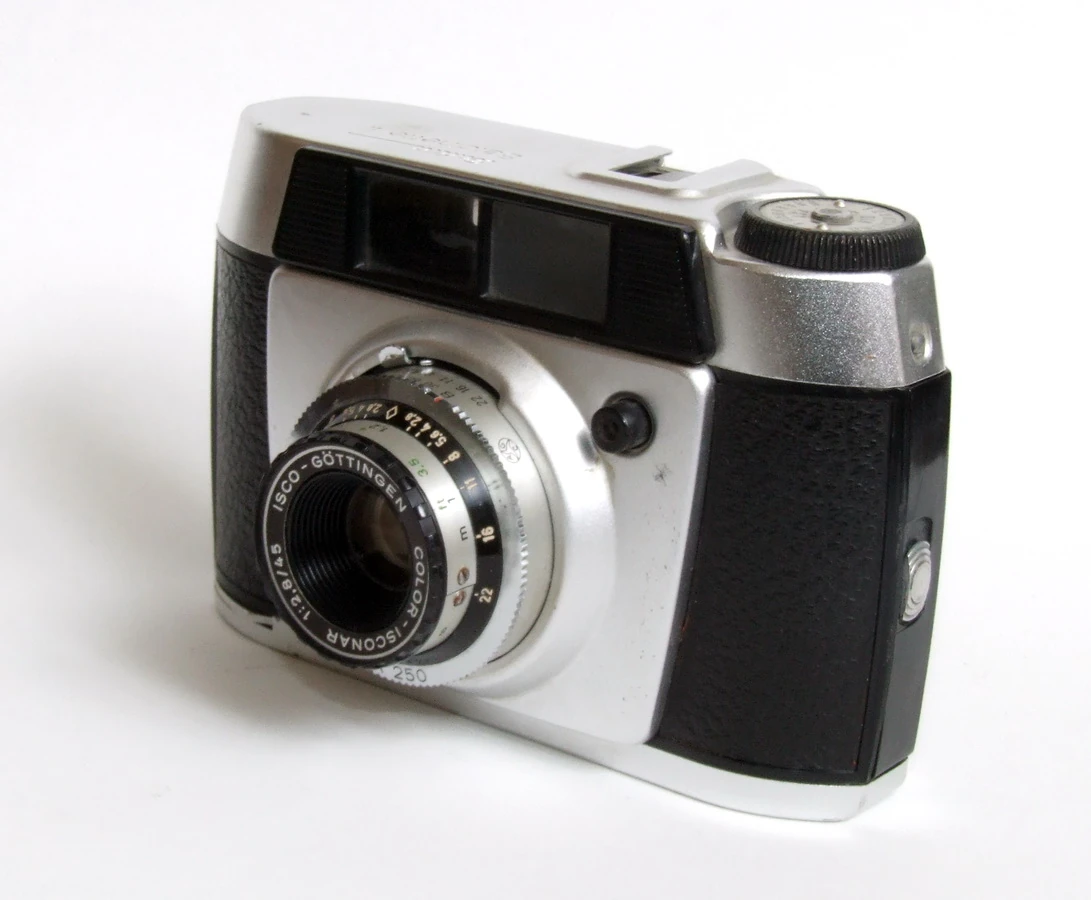

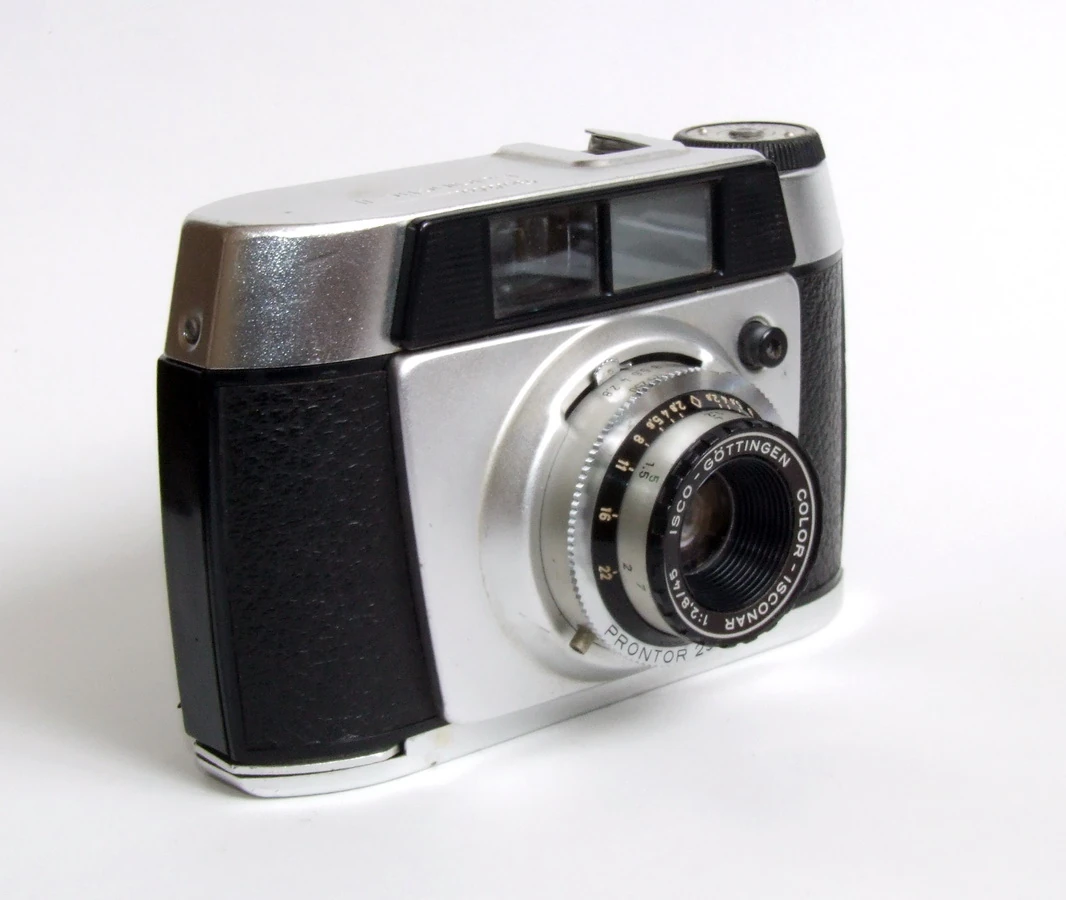

images by Süleyman Demir

Baldinette II isa 35mm film viewfinder camera made by Balda Kamera-Werk based in Bünde, West Germany and introduced in 1960.[1]

The other model is Baldinette II with Selenium cell lightmeter (1961). It was sold also as Europan I, Coronet, Lotus-35 and Revue 35.

SpecificationsEdit

  • Engraving on the top plate: Balda Baldinette II
  • Lens: Isco-Göttingen Color-Isconar 45mm f/2.8, filter slip-on, serial no.none
    • Aperture: up to f/22 setting: lever and scale on the lens-shutter barrel
    • Focus range: 1.2- m +inf
  • Focusing: manual front element focusing, distance and DOF scales on the lens
  • Shutter: Prontor 250 wth speeds 1/30-1/250 +B; setting: ring and scale on the lens-shutter barrel [2]
  • Shutter release: on front of the camera, w/cable release socket
  • Cocking lever: on the back of the bottom plate
  • Frame counter: manual reset, on the bottom plate
  • Viewfinder: Bright frame finder
  • Re-wind knob: on the top-plate
  • Re-wind release: button on the bottom plate
  • Flash PC socket: on the lens-shutter barrel
  • Cold-shoe
  • Memory dial: on the re-wind knob
  • Self-timer: none
  • Back cover: removable, opens by a latch on the left side
  • Engraving on the bottom plate: Made in Germany West
  • Tripod socket: ¼"
  • Strap lugs: none
  • Body: metal and plastic; Weight: 270g
  • Serial no. on the bottom plate

Notes and referencesEdit

  1. McKeown's p.98
  2. Baldinette II was offered with Vario shutter and some cosmetic variations also.
