Altissa Altix IIIA

5,978pages on
this wiki
Talk0

Altix IIIA is a 35mm film interchangeable lens viewfinder camera made by Altissa and introduced in c.1949. This model is the first 24x36mm format camera of the Altix series. [1]

See also the article Altix.

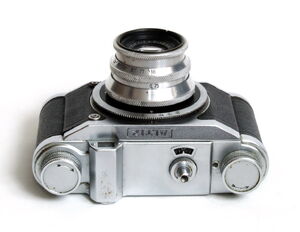

Altissa Altix IIIA 01

Altix IIIA

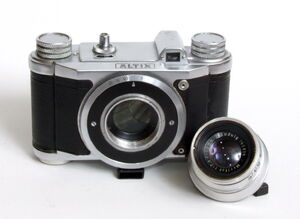

Altissa Altix IIIA 08

Altix IIIA

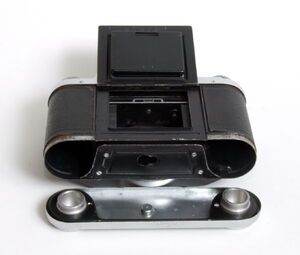

Altissa Altix IIIA 06

Altix IIIA

Altissa Altix IIIA 04

Altix IIIA images by Süleyman Demir

SpecificationsEdit

  • Engraving on the top plate: Altix
  • Lens: E.Ludwig Meritar V 50mm f/2.9
  • Mount: screw 29mm, filter slip-on
  • Lens release: simply turn to counter-clockwise
  • Aperture: up to f/16, no click stops, setting: by lens front ring and scale
  • Focus range: 0.75-12m +inf
  • Focusing: manual helicoid focusing, guess the distance, ring and scale on the lens
  • Shutter: everset leaf shutter, (name ?); speeds: 1/25, 1/50,1/100 +B; setting: ring and scale behind the lens flange
  • Cocking and Shutter release: by the same button on the top cover, w/cable release socket, pressing once cocks the shutter and fires, not works without the film in the camera, (double exposure prevention)
  • Winding knob: on the left of the top plate
  • Frame counter: additive type, manual reset, window on the top-plate
  • Viewfinder: reverse telescopic finder
  • Re-wind knob: on the right of the top plate
  • Re-wind release: ?
  • Flash PC socket: two, old type, on the front cover
  • Cold-shoe: none
  • Self-timer: none
  • Film loading: bottom loading, removable take-up spool; hinged film pressure plate, bottom plate opens by a knob on it, A open, Z close
  • Exposure table on the back cover
  • Tripod socket: two, 3/8" and 1/4"
  • Strap lugs: none
  • Body: metal; Weight: 445g
  • Serial no. none

Notes and referencesEdit

  1. McKeown's p.257
